Fleck Water Softener And Back Wash Control Valves

Index View

Fleck Water Softener And Back Wash Control Valves

Catalog Home / Commercial_and_Residential_Water_Purification_Products / Mineral_Tanks_and_Accessories / Mineral_Tank_In_Out_Heads / Control_Heads_for_Water_Softeners_and_Auto_Backwash_Systems / Fleck_Water_Softener_And_Back_Wash_Control_Valves

Fleck 5600 Valves
Section Quick Index

List 3 sub categories in this group        List all 16 products in this group

Combines rugged, glass-reinforced Noryl construction with modular design which makes disassembly quick and easy. Seven cycles with adjustable brine flow is efficient and reliable. Flow rates up to 20 gpm. Backwash capacity handles up to 12 inch diameter softeners, 10 inch diameter filters. Choose from a wide range of options, including standard or L back plates, meter- or timer-initiated regeneration, 3/4 and 1 yokes, by-pass valves, etc. Backwash flow control button sold separately. A 24k label provided with meter valves.

5600 Spec Sheet
5600 SE Spec Sheet
5600 Operating Manual
5600 Valve Parts List
5600 Timer Drive Assembly Parts List
5600 Meter Drive Assembly Parts List
5600 SE Drive Assembly Parts List
SE Controller Spec Sheet and Information
How to set up the 5600 meter valve

Fleck 1500 Control Heads

List all 5 products in this group

Fully adjustable, 5-cycle controls deliver controlled upflow backwash, down flow brining, slow rinse, rapid rinse, brine refill and service. Solid brass valve body. Continuous flow rates up to 17 gpm. Backwash capacity handles up to 14'' diameter softener tanks, 10'' diameter for filter applications. Meter or timer initiated regeneration. Valve screws directly in the mineral tank and inlet and outlet are 3/4'' FIPT. Available as a top or side mount. Stainless steel back plates. Designer covers and backwash flow control assemblies sold separately.

1500 Spec Sheet
1500 Service Manual
SE Controller Spec Sheet and Information

Fleck 2510 Control Heads
Section Quick Index

List 4 sub categories in this group        List all 11 products in this group

Fully adjustable, 5-cycle controls deliver controlled upflow backwash, down flow brining, slow rinse, rapid rinse, brine refill and service. Noryl valve body. Continuous flow rates up to 19 gpm. Backwash capacity handles up to 16'' diameter softeners, 16'' diameter filters. Meter- or timer- initiated regeneration. Environmental back plates. Yokes, by-passes, covers and backwash flow control assemblies sold separately.

2510 Spec Sheet
2510 Service Manual
SE Controller Spec Sheet and Information

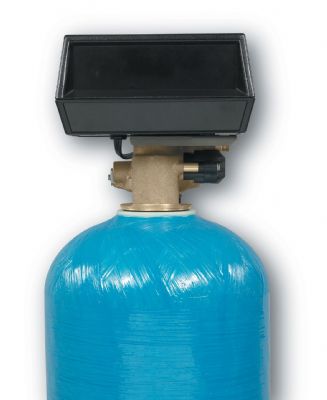

Fleck 4650 Automatic Hot Water Valve

List the product in this group

The 4650 control combines a rugged, lead-free brass body with the time-tested ''L''-style power head with a 12-day clock. Handles water temps up to 180. Backwash capacity handles up to 12'' diameter tanks. Cover and backwash flow control buttons sold separately. Uses standard 5600 style yokes and bypasses. For hot water use, choose special 5600 stainless bypass or yoke.

Fleck 4650 Spec Sheet
Fleck 4650 Service Manual
Fleck 4650 Hot Water Parts List
SE Controller Spec Sheet and Information

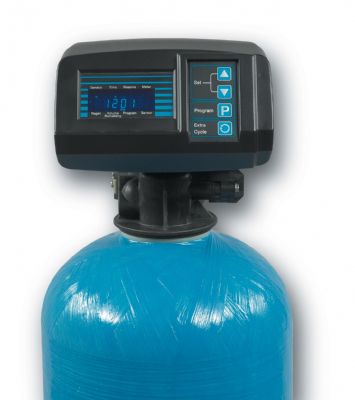

Fleck 6600 Electronic Meter Valve with Cover

List the product in this group

Solid-state microprocessor with LCD display that shows time of day, remaining capacity, flow rate, regeneration cycle in process and more. Fully-adjustable down flow or upflow regeneration cycles. Choose from three modes of operation: immediate meter regeneration, delayed meter regeneration or delayed time regeneration. NiCad battery available for backup. Backwash flow control button sold separately.

6600 Spec Sheet
6600 Down Flow Valve Parts List
6600 Up flow Valve Parts List
6600 Down Flow Valve Service Manual
6600 Up Flow Valve Service Manual
SE Controller Spec Sheet and Information

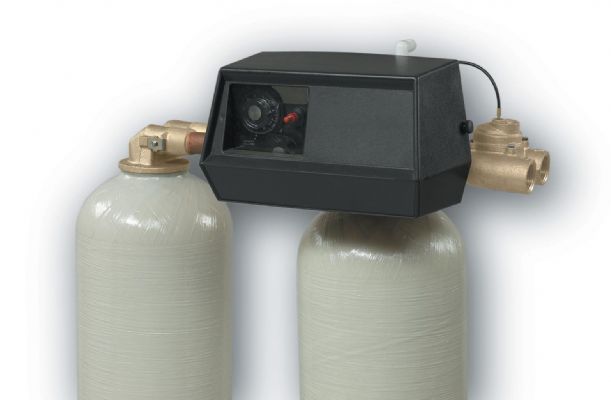

Fleck 9000 Meter Valves and Tank Yokes
Section Quick Index

List 2 sub categories in this group        List all 13 products in this group

Perfect for light commercial/heavy residential systems that require twin-tank conditioning capabilities. Five-cycle control delivers controlled upflow backwash, down flow brining, slow rinse, rapid rinse and timed brine refill, ALL performed with conditioned water. The most salt-efficient valve available because you don't need to program in a reserve. Regenerates immediately when needed, as often as every 90 minutes if required. Continuous flow rates up to 18 gpm on 3/4'' valves, 21 gpm on 1'' valves. Handles up to 16'' softeners, up to 12'' filters depending on filter media. Covers, backwash flow control buttons and tank yokes sold separately.

9000 Valve Service Manual
9000 Valve Spec Sheet
9000 Valve Parts List
9000 Valve 2nd Tank Adapter
SE Controller Spec Sheet and Information

Fleck Control Head Parts

List all 6 products in this group

Replacement parts for Fleck control valves can be found in this category. Not all parts are listed but are available. Please contact if you need a part that is not currently listed.
